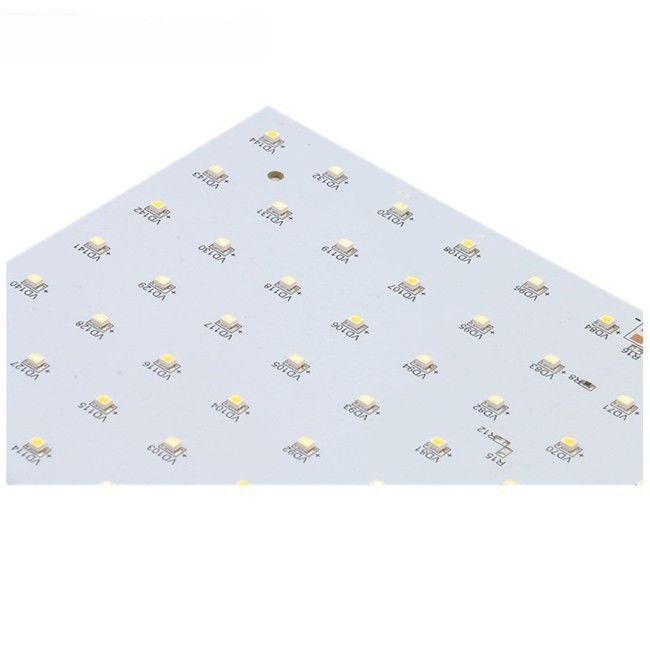

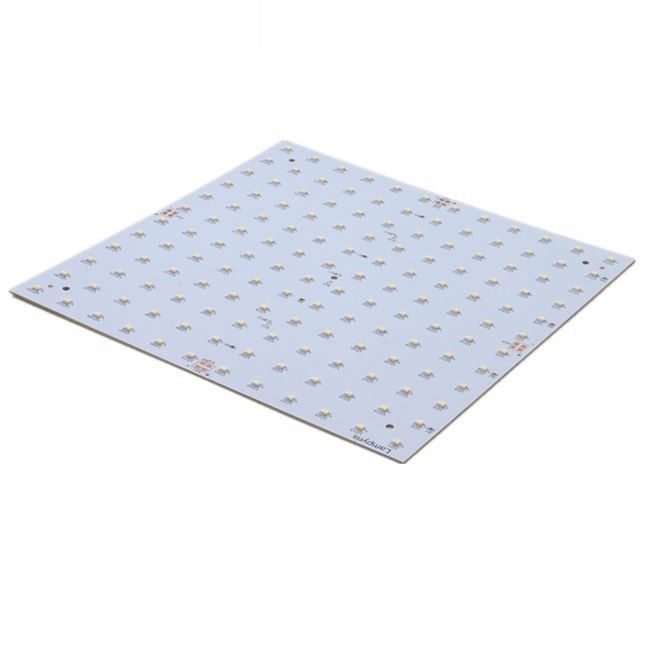

1.6mm Thickness Single Sided Aluminum Base LED PCB

1.6mm Thickness Single Sided Aluminum Base LED PCB

single sided aluminum base led pcb

1.6mm aluminum base led pcb

1.6mm led pcb circuit board

Place of Origin:

China

Brand Name:

Yuetong

Contact Us
Request A Quote
Product Details
Laminate Material:
Aluminum
Surface Finish:
HASL
Copper Thickness:
1 OZ
Board Thickness:
1.6mm
Payment & Shipping Terms
Price
negotiable
Packaging Details
carton box
Payment Terms
Western Union, MoneyGram, T/T
Product Description



Now more and more lighting led products prefer to use Aluminum as the base /core material to make Aluminum PCB /MCPCB. MCPCBs are used instead of traditional FR4 or CEM3 PCBs because of the ability to efficiently dissipate heat away from the components. This is achieved by using a Thermally Conductive Dielectric Layer.



Key Specifications/Special Features



Number. Of Layers:

1

Laminate Material:

Aluminum

Surface Finish:

HASL

Copper Thickness:

1 OZ

Board Thickness:

1.6mm

Board Size:

400*400mm

Color Of Mask:

White

Color Of Silkscreen:

Black with Non-Conductive Ink

Flammability:

UL 94V-0

Workmanship:

Compliance with IPC-A-600 & IPC-6012 CLASS II

Thermal Conductivity

1.0 W







FAQ:

1. What service can you provide?

We are providing pcb fabrication, components purchasing, pcb assembly, complete assembly.

2. Do you have an order minimum?

We don’t have any MOQ, any quantity from you are acceptable.

3. What files required to get quotation from you?

For PCB, please provide the Gerber data/files and indication of related technical requirements as well as any special requirement if you have.
For PCBA(PCB with soldered components),please provide Gerber files and also BOM (components list), and if you need us to do function test, please also provide the test instruction/procedure.



Yue Tong Electronic is a competitive China single layer alu pcb OEM manufacturer, supplier and vendor, you can get quick turn single layer alu pcb production prototypes and samples from our factory. Single layer Aluminum bare PCB (LED Lighting PCB).
